Mini Electric Magnetic Lock 100 LBS Magnetic Cabinet Locks For Access Control System

Name: Mini Electric Magnetic Lock 100 LBS Magnetic Cabinet Locks For Access Control System
Brand: ximiir
Price: 1 USD

China Mini Electric Magnetic Lock 100 LBS Magnetic Cabinet Locks For Access Control System wholesale

Place of Origin : Guangdong,China(Mainland)

Brand Name : ximiir

Model Number : XM-M60

Price : Deliberation

Certification : CE, FCC, ROHS

Delivery Time : 1 - 100pcs-3days; 101 - 500pcs-7days; 501 - 1000pcs-15days; >1000 To be negotiated

Payment Terms : L/C D/A D/P T/T Western Union MoneyGram

Supply Ability : 1 - 100pcs-3days; 101 - 500pcs-7days; 501 - 1000pcs-15days; >1000 To be negotiated

Size : 80Lx38Wx25H(mm)

Armature Plate Dimension : 75Lx33Wx11H(mm)

Holding Force : 60kg(120Lbs)

Input Voltage : 12 or 24VDC

Current : 12V/500mA or 24V/250mA

Suitable : File Cabinet ,Display Cabinet

Surface Temp : ≤+20℃

Operating Temp : -10~+55℃(14-131F)

Humidity : 0~90%(non-condensing)

Weight : 0.6KGS

MOQ : 1PC

Packaging Details : 1pc/box, 10pcs/carton

Contact Now

1. Collinear Load Test 60kg,120pounds.
2. Dual Voltage 12 or 24 VDC(optional).
3. The Standard Voltage is 12VDC when Finished.
4. MOV Provides Reverse Current Protection.
5. Anti-Residual Magnetism Designed.
6. High Strength Material,Anodized Aluminum Housing.
7. Design without Mechanical Failure.
8. Increase the holding Force,Dual Insulative Housing.

Model	XM-60M
Size	80Lx38Wx25H(mm)
Holding Force	60kg(120Lbs)
Armature Plate Dimension	75Lx33Wx11H(mm)
Input Voltage	12V / 24V DC
Current	12V/500mA or 24V/250mA
Suitable	File Cabinet ,Display Cabinet
Surface Temp	≤+20℃
Operating Temp	-10~+55℃(14-131F)
Humidity	0~90%(non-condensing)
Cover Finish	Anodized aluminum/Stainless Steel
Lock Finish	Zinc
Armature Plate Finish	Zinc
Weight	0.6KGS

Mini Electric Magnetic Lock 100 LBS Magnetic Cabinet Locks For Access Control System

Product Tags:

magnetic locking system

magnetic gate lock

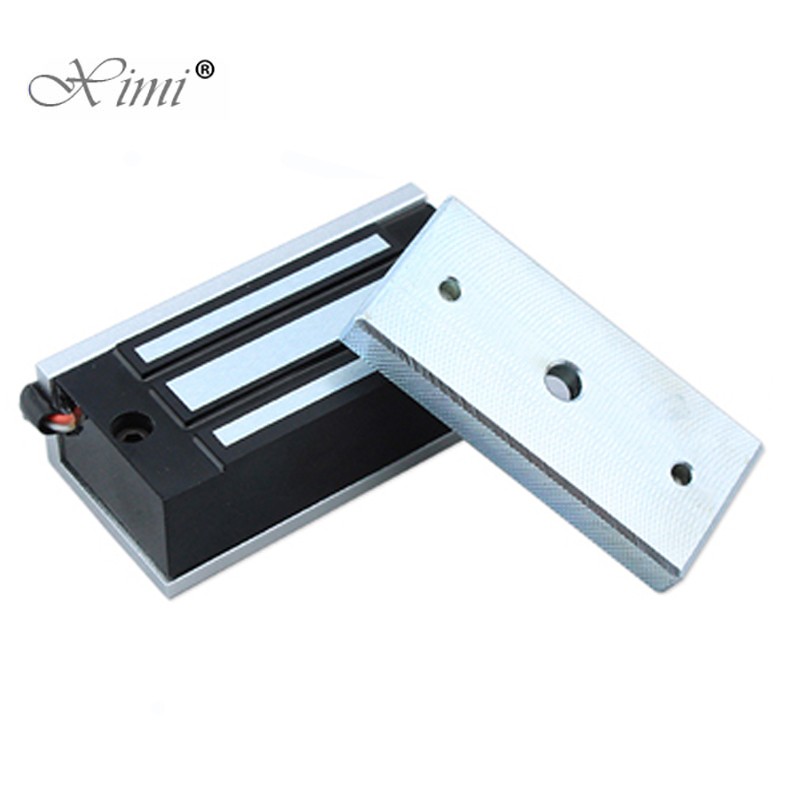

Mini Electric Magnetic Lock 100 LBS Magnetic Cabinet Locks For Access Control System Images
